Converting the formed steel fuel lines in the valley of your Duramax to AN fittings and hose will drastically improve the fitment of aftermarket intakes, y-bridges, and larger turbos.

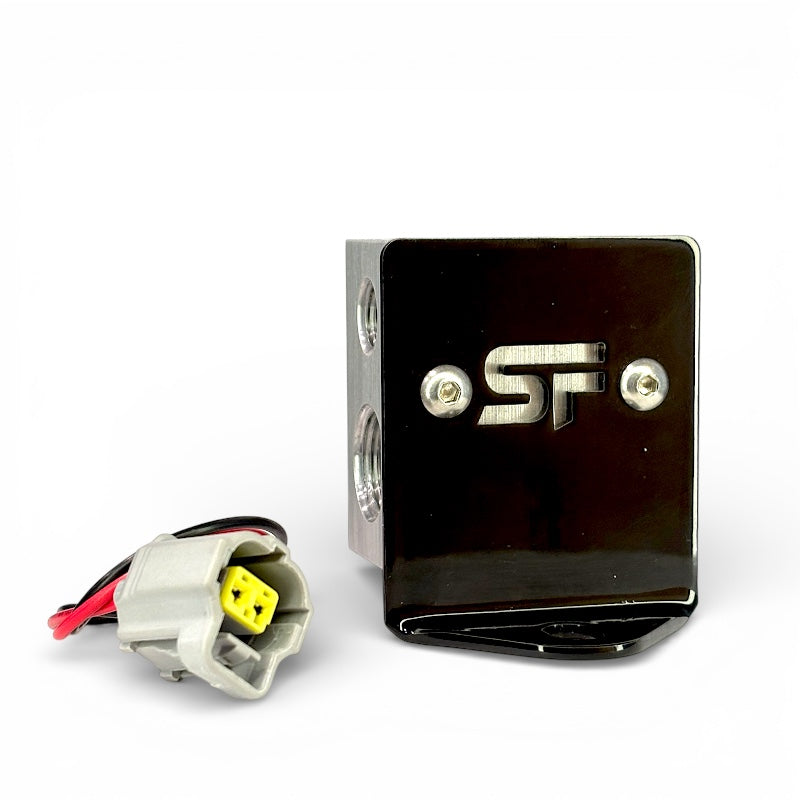

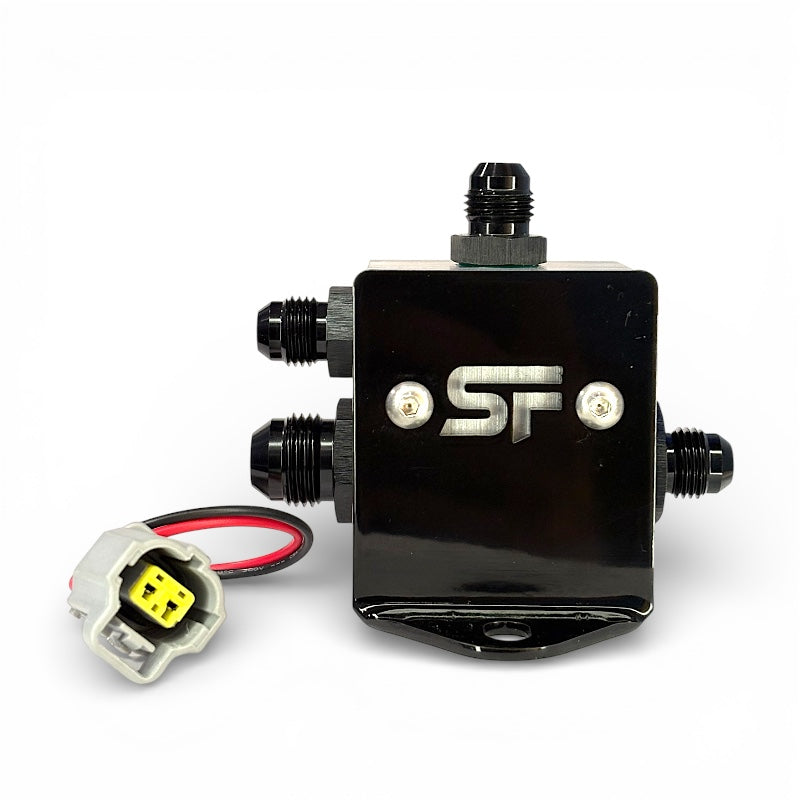

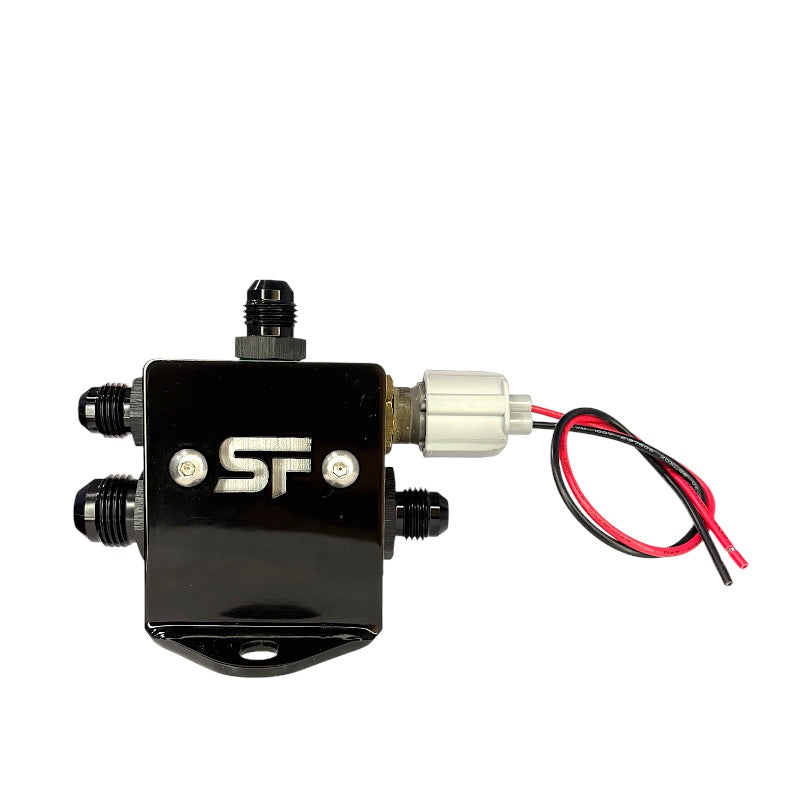

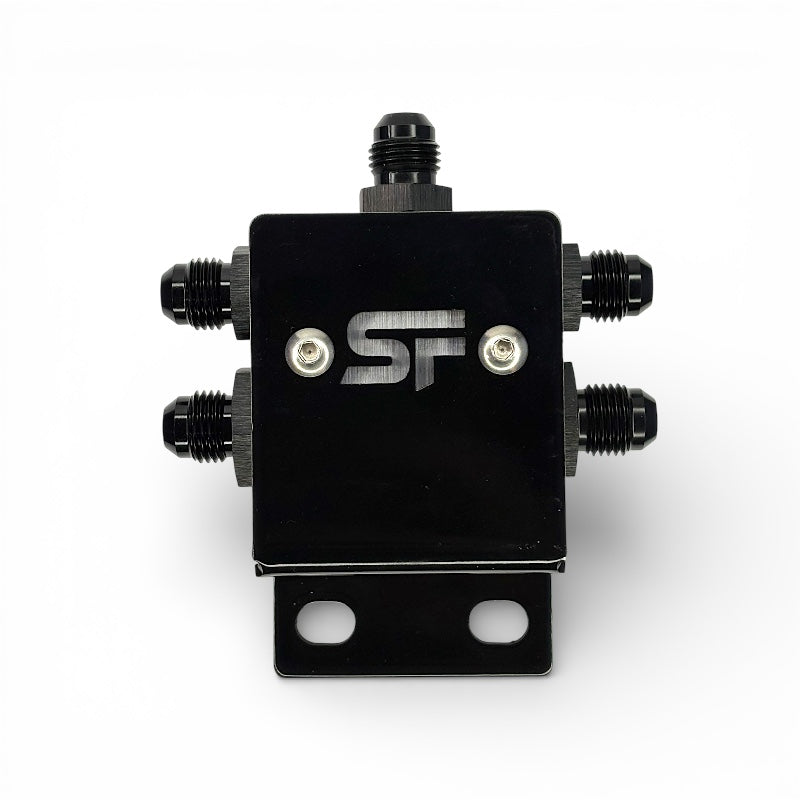

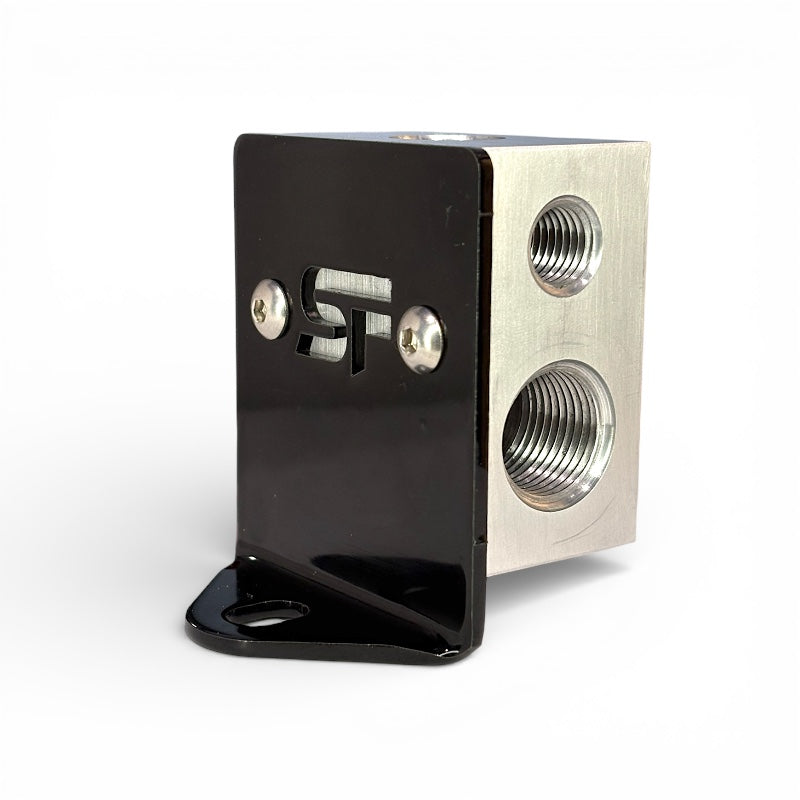

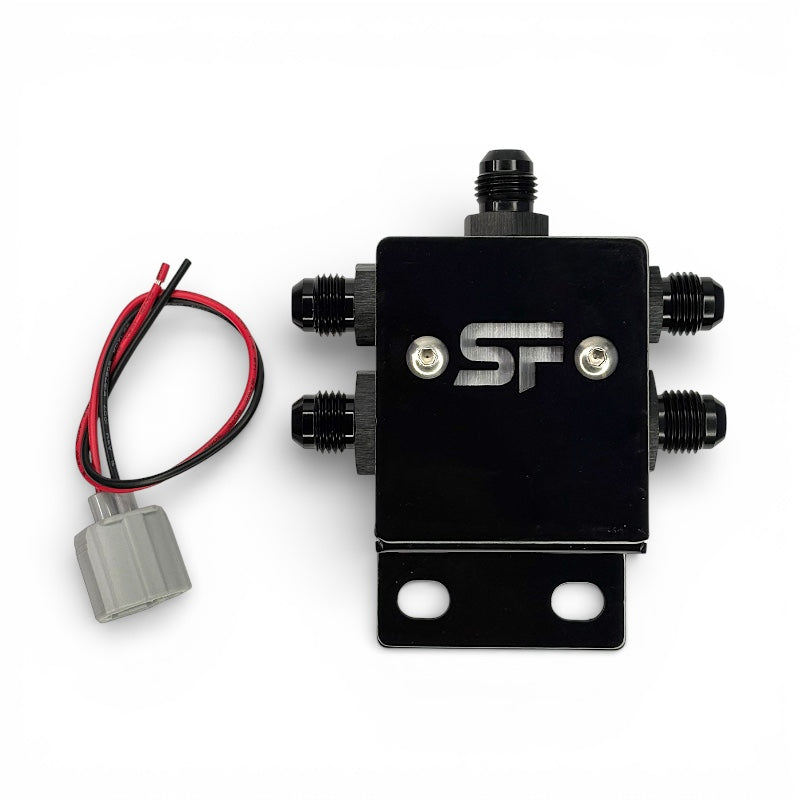

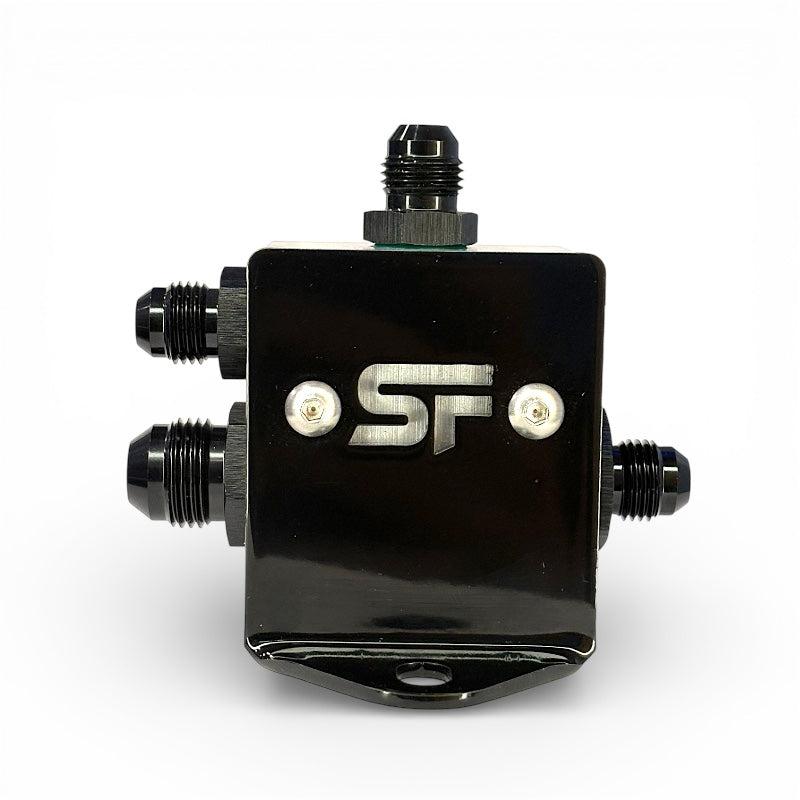

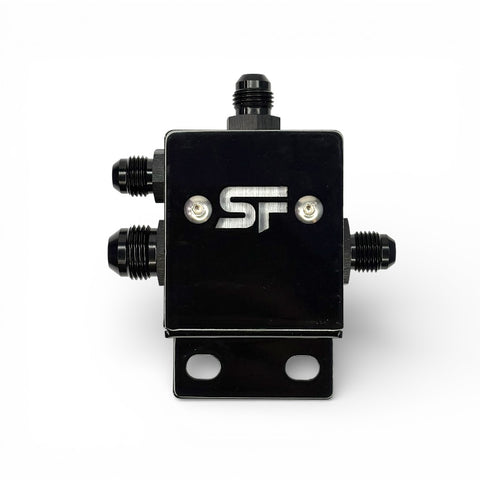

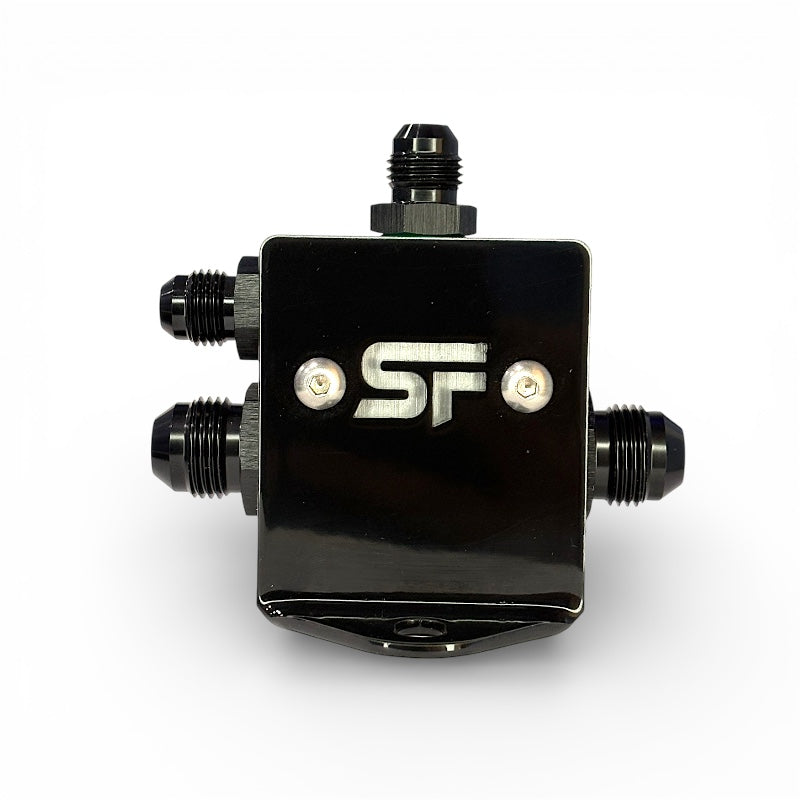

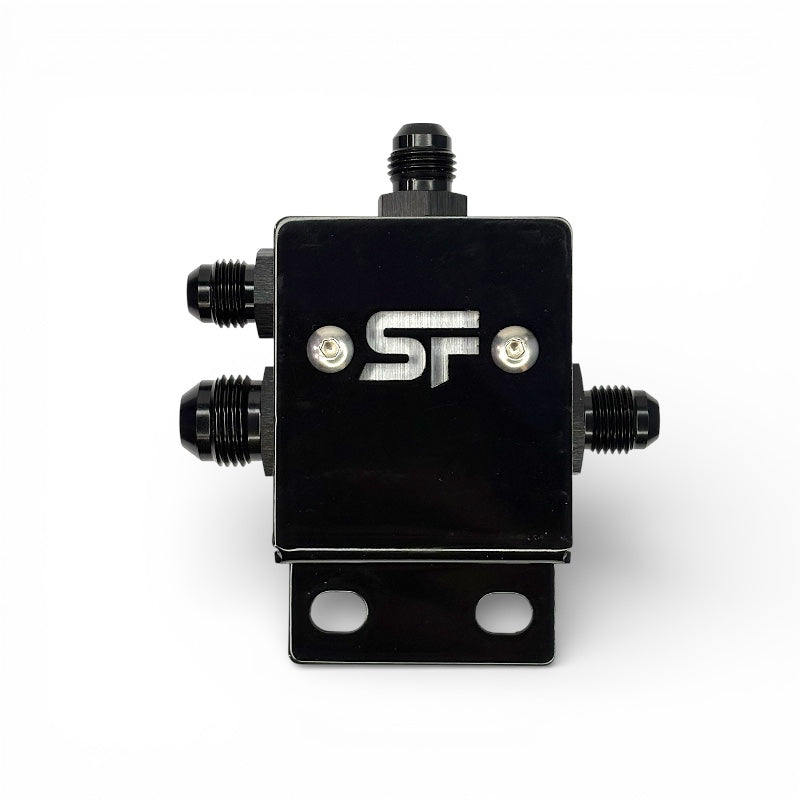

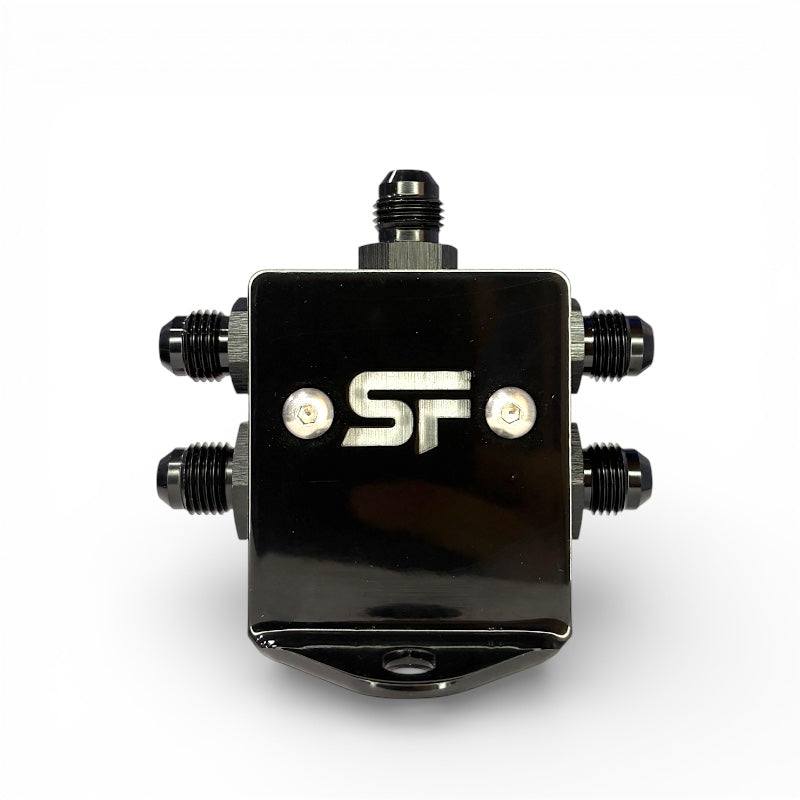

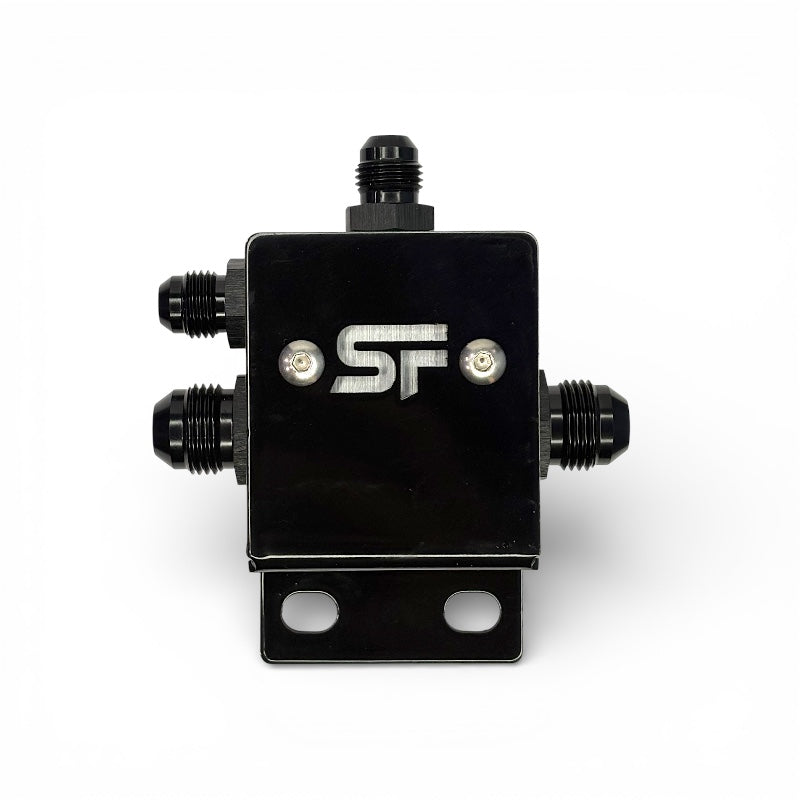

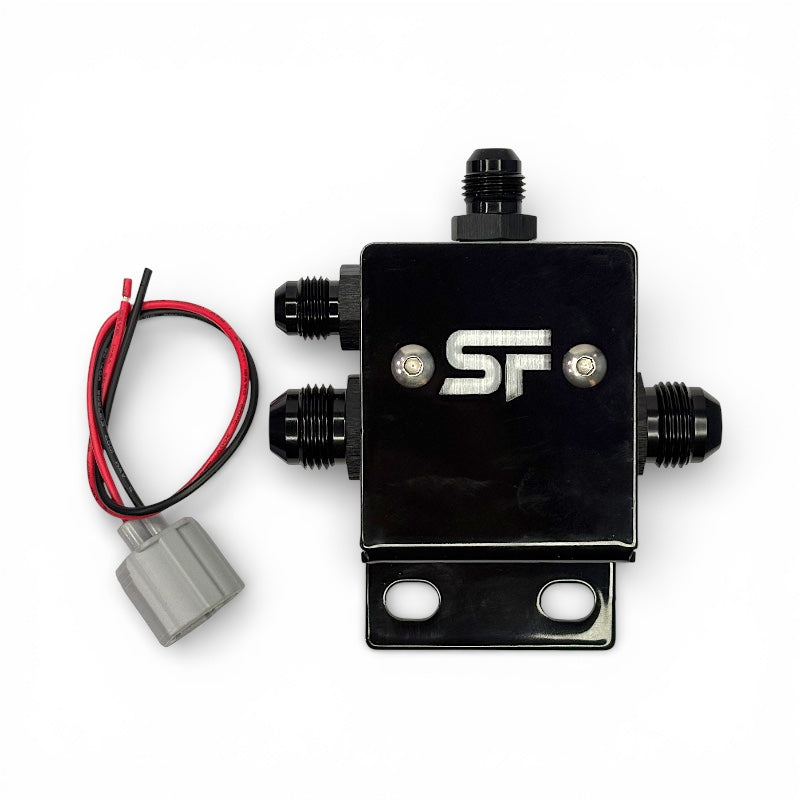

This billet fuel distribution block from Shocker accommodates 5 unique return sources in both -8 or -6 as well as the factory fuel temp sensor (If Applicable). All the ports are connected in this block providing maximum options for port usage, sizing, and direction of flow.
These blocks work great on trucks equipped with multiple CP3's and billet injector return rails.
Features:
- (2) -8ORB Ports
- (2) 12mmx1.5 ORB Ports
- (1) -6ORB Port

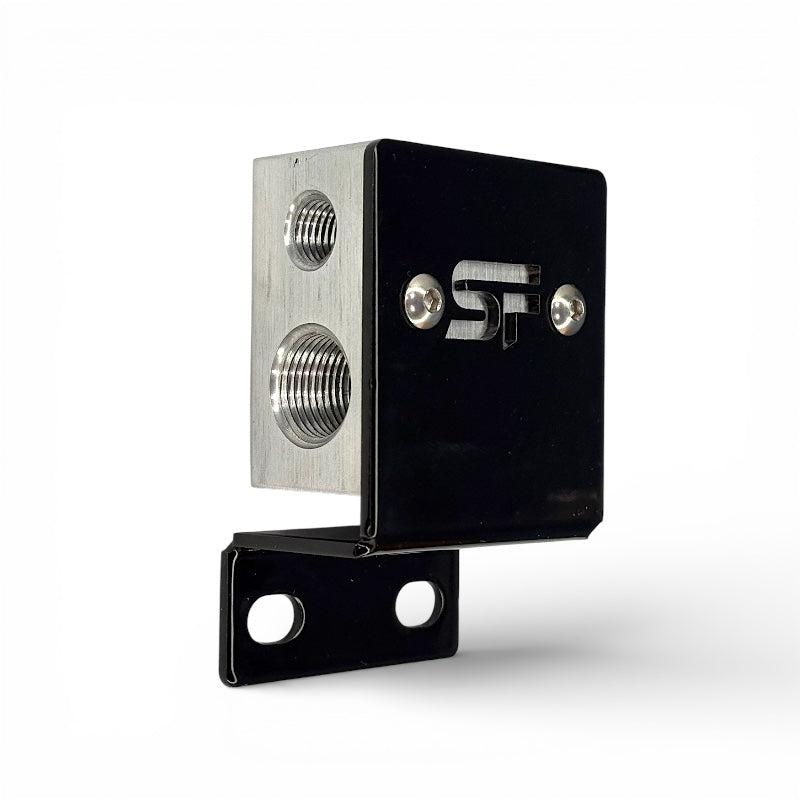

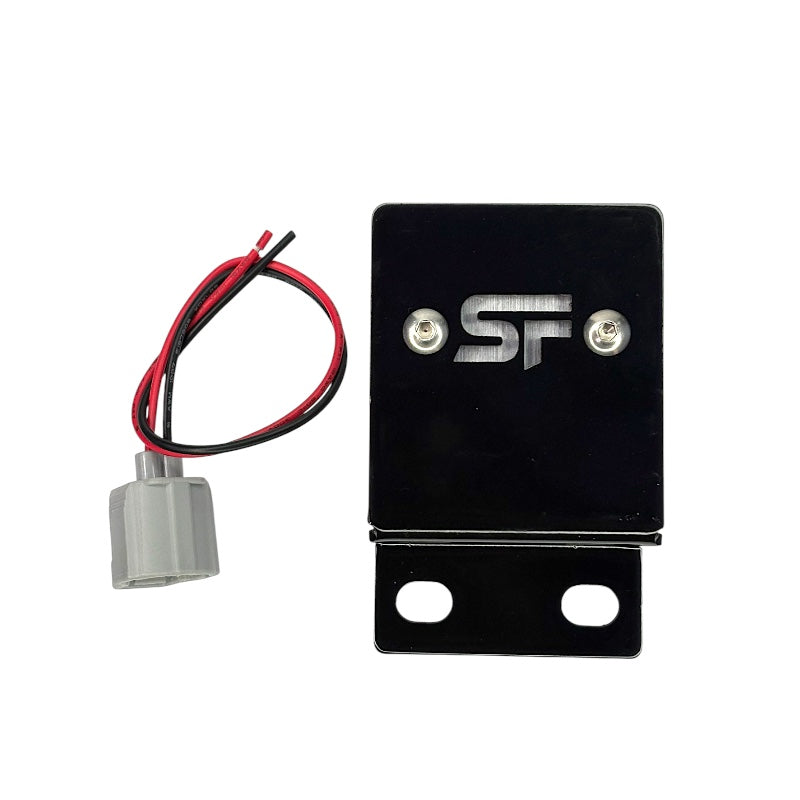

- Choice of Universal Mounting Bracket

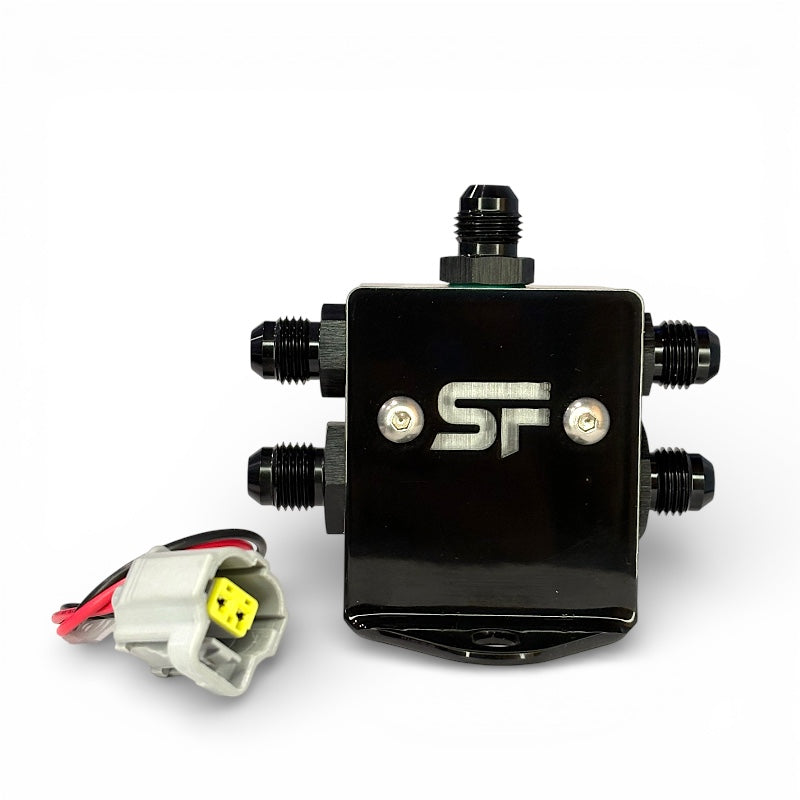

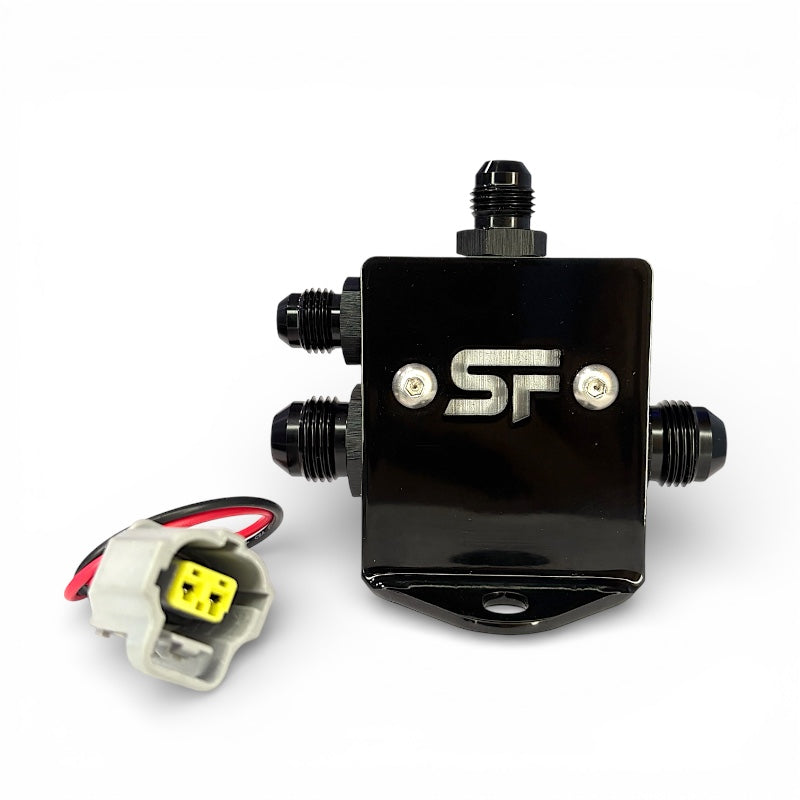

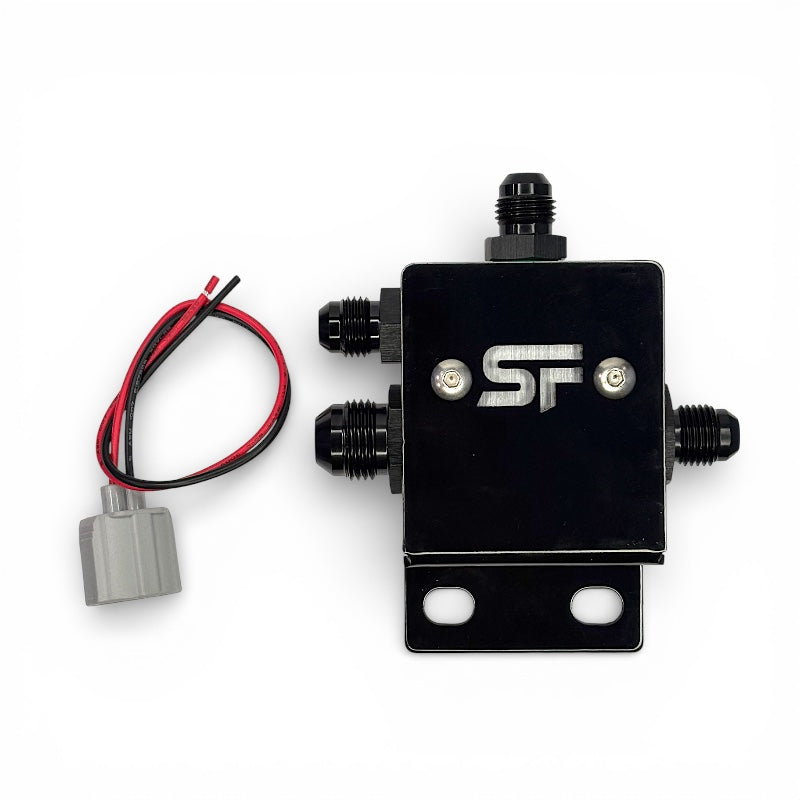

- Optional 8" Duramax Temp Sensor Extension Pigtail
- Optional Fitting Packages
Fitment:
- Works with 2001-2017 GM Duramax Fuel Temp Sensors LB7 LLY LBZ LMM LML
- Works with 99+ GM LS Coolant Temperature Sensors (ECT)
- Accepts GM 97224993 as well as other aftermarket sensors FS1004, FS104, ISK949, FK0005, 2111192, 5S1605, EF0151.
- Works with RIFE 52-1246 M12 x 1.5 RIFE Liquid Temp Sensor (Coolant, Water, Oil, Trans Fluid, Fuel)
